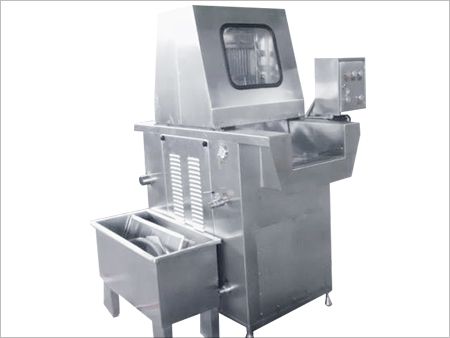

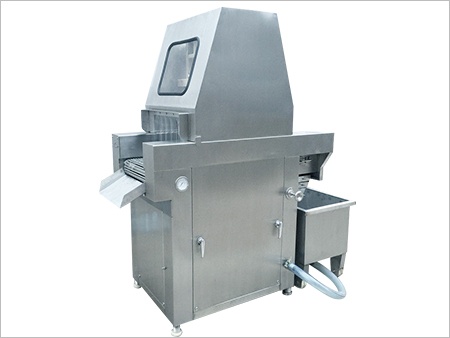

48 stitches -189 stitches with bone salt injection machine new series of products:
1. It is made of high-quality stainless steel materials and stainless steel pump. It has reasonable design and easy maintenance.
2. In order to separate the injection machine and the small meat pieces more thoroughly, the equipment has designed four layers of different filtration functions, which can timely discharge the small meat pieces out of the injection needle hole without blockage and facilitate replacement.
3. The injection pressure of this series can be adjusted between 0.1-0.8mpa according to different products. The pressure gauge shows the injection pressure is intuitive and convenient. Adopt advanced frequency conversion governor, the chain step distance and step speed and needle injection speed synchronously adjustable.
4. This series of injection machines with bone salt water are equipped with automatic needle protection device, which can be lifted up when the injection needle touches hard objects, so as to avoid damage. In addition to meat processing, the needle replacement also applies to fish, sea cucumber, poultry and other products of injection processing.
5. The series of products with bone salt water injection machine are updated twice a year and equipped with computer version control, pipeline filtration and other configurations. Welcome to inquire.
Scope of application of 48-189 needle saline injection machine:
Widely used in meat, aquatic products, canned food, fruits and vegetables deep processing, condiments, edible fungi, soup and cooked food, pet food, leisure food, beef, pork, duck breast, barbecue, ham and other meat processing pet food, leisure food.
技术参数：
| 型号 | 48针 | 60针 | 80针 | 108针(鱼用) | 120针 | 180针 |
| 生产能力(Kg/h) | 200 | 300 | 500 | 600 | 700 | 800 |
| 总功率(kw) | 2.6/2.35 | 2.6/2.35 | 4.5/4.8 | 4.5/4.8 | 4.5/5.2 | 5.2/5.2 |
| 注射速度(次/min) | 13-66 | 13-66 | 13-66 | 13-66 | 13-66 | 13-66 |
| 主机尺寸(L x W x H)mm | 1350 x 600 x1750 | 1350 x 600 x 1750 | 1390 x 770 x 1750 | 1390 x 770 x 1750 | 1620 x 950 x 1750 | 1620 x 950 x 1750 |
| 步进速度(m/min) | 40-70 | 40-70 | 40-70 | 40-70 | 40-70 | 40-70 |
| 注射压力(Mpa) | 0.1-0.8 | 0.1-0.8 | 0.1-0.8 | 0.1-0.8 | 0.1-0.8 | 0.1-0.8 |
| 总重量(Kg) | 330 | 350 | 400 | 400 | 450 | 550 |
| 传动方式 | 双级变速 | 无级变速 | 无级变速 | 无级变速 | 无级变速 | 无级变速 |
公司保留对产品的修改权利，技术参数及规格式样如有改动恕不另行通知。
